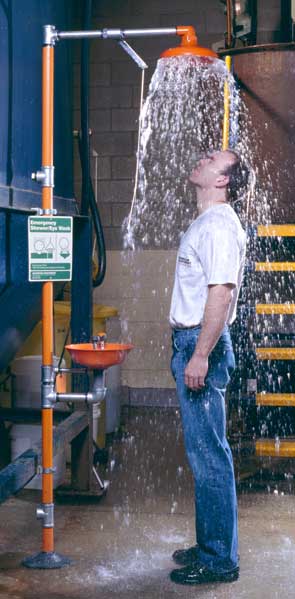

Unit used as an emergency shower.

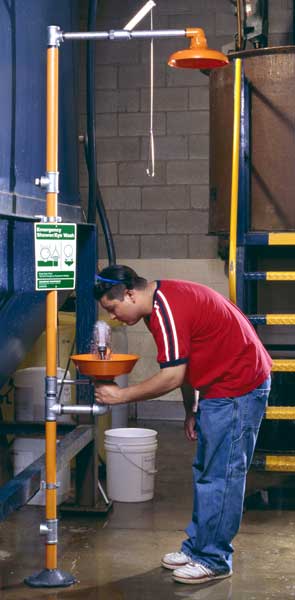

Unit used as an emergency eye wash.

Unit features a stainless steel bowl, not the orange plastic bowl pictured above.

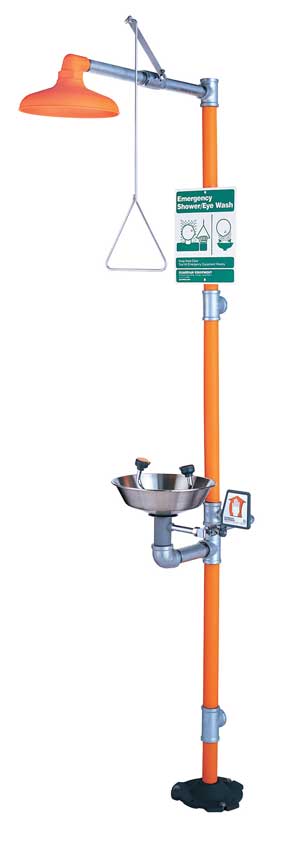

Floor Mounted Eye Wash
and Shower Station

• High Quality Assurance! Valve and spray head assemblies are factory assembled and water tested prior to shipment. No danger of cutting hands on sharp edges during assembly
• Effective Eye Wash - 2 GS-Plus spray-type heads deliver a consistently soft, full spray of water for rinsing eyes
• Meets ANSI eye wash requirement, requiring only one motion to operate: just press the hand lever
• Spray heads feature a flip-top dust cover, internal flow control and patented filter to remove impurities
• Water supply uses 1¼" NPT female top or side inlet, and waste uses 1¼" NPT female outlet. Outlet can be positioned at either 8" or 20" above finished floor by reversing lower pipe nipples
• Includes ANSI-compliant sign designating "Emergency Shower/Eye Wash"
• Stainless steel eye wash bowl measures 11½" diameter
• Eye wash valve is a ½" IPS chrome plated brass stay-open ball valve with Teflon seals
• Shower head is 10" in diameter, and is constructed of orange ABS plastic
• Shower valve is 1" IPS chrome plated brass stay-open ball valve and Teflon seals.
• Shower features stainless steel actuating arm and 29" stainless steel pull rod
• High visibility and corrosion resistance - Pipes are Schedule 40 galvanized steel, with orange polyethylene covers for vertical piping
• Made in the USA - all pieces are manufactured, polished and assembled in the Chicago, Illinois plant
• 2 year warranty
