How To Use:
- Water flow is activated by pulling down on yellow eye wash tray. Integral full flow nozzles deliver soft spray of water.
- Swing tray up to storage position to stop flow.
- Waste water is directed into drain opening in tank basin. 3 ft. long drain hose in basin directs discharge into floor drain, storage tank or other receptor.
- Unit should be inspected regularly and water changed at least once every 6 months.
How To Use:
- Location of unit should be near a drain and away from water-sensitive materials such as carpet, drywall, etc.
- Fill with clean, potable water and add bacteriostatic additive (included)
- Pressurize unit to 80 PSI air pressure
- Press lever to operate
- Unit does not collect waste water. Waste water is eliminated into nearby drain.
- Unit should be inspected regularly and water changed at least once every 6 months
|

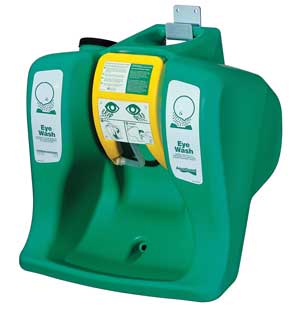

AquaGuard Gravity-Flow Portable Eye Wash is Ideal for Low Traffic and Remote Areas - Anywhere Potable Water is Not Available
- Self-contained gravity-flow eye wash unit uses gravity to deliver water through dual spray heads
- Delivers more than 14 gal of water for 15 minutes (0.7 gal per minute), complying with ANSI Z358.1-2004 for eye washes
- Rugged polyethylene plastic tank can be installed in a variety of locations
- Built-in carrying handle
- 16 gal capacity
- Heavy wall construction and reinforced ribs support weight
- Includes ANSI-compliant sign designating "Emergency Eye Wash"
- Can be wall mounted with epoxy-coated steel bracket (included) or placed on edge of counter top
- Includes 8oz bottle of bacteriostatic additive, which protects against growth of bacteria, fungus, algae and acanthamoeba
- Completely assembled and water tested before shipment
- 2 year warranty - longest in the industry

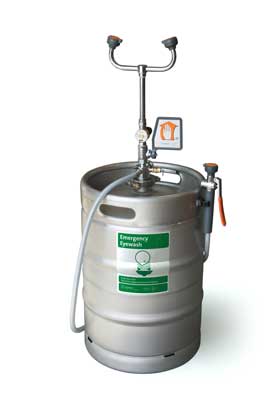

Stainless Steel Portable Eye Wash Unit
Also Features Drench Hose
- Unit uses pressure in metal container to provide water spray
- Delivers 10 gal of water for effective rinsing of eyes, face or body
- Eye Wash features 2 GS-Plus spray heads, each with a flip top dust cover, internal flow control and filter. Includes 1/2" IPS chrome plated brass stay-open ball valve with flag handle.
- Eye Wash delivers 0.65 GPM for 15 minutes
- Drench Hose features single GS-Plus spray head with flip top dust cover, internal flow control and filter. Includes chrome plated brass squeeze valve with stainless steel lever handle and 6 ft. reinforced PVC hose.
- Stainless steel pressurized tank has air intake fitting, pressure gauge and pressure relief valve
- Built-in carrying handles
- 15 gal capacity
- Includes 8oz bottle of bacteriostatic additive, which protects against growth of bacteria, fungus, algae and acanthamoeba
- Completely assembled, pressurized and water tested before shipment (unit is depressurized and emptied prior to shipping)
- 2 year warranty - longest in the industry
- Weight: 35.6 lbs empty, 118.9 lbs. filled
- Includes ANSI-compliant sign designating "Emergency Eye Wash," permanently affixed to tank
Note: Under ANSI Z358.1-2004, drench hose units supplement but do not replace other types of emergency equipment
|
